ELMEX SOLAR PV PHOTOVOLTAIC PRODUCT

52.0 INR/Piece

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

ELMEX SOLAR PV PHOTOVOLTAIC PRODUCT Price And Quantity

Price 52.0 INR/Piece
Minimum Order Quantity 50 Piece

Product Description

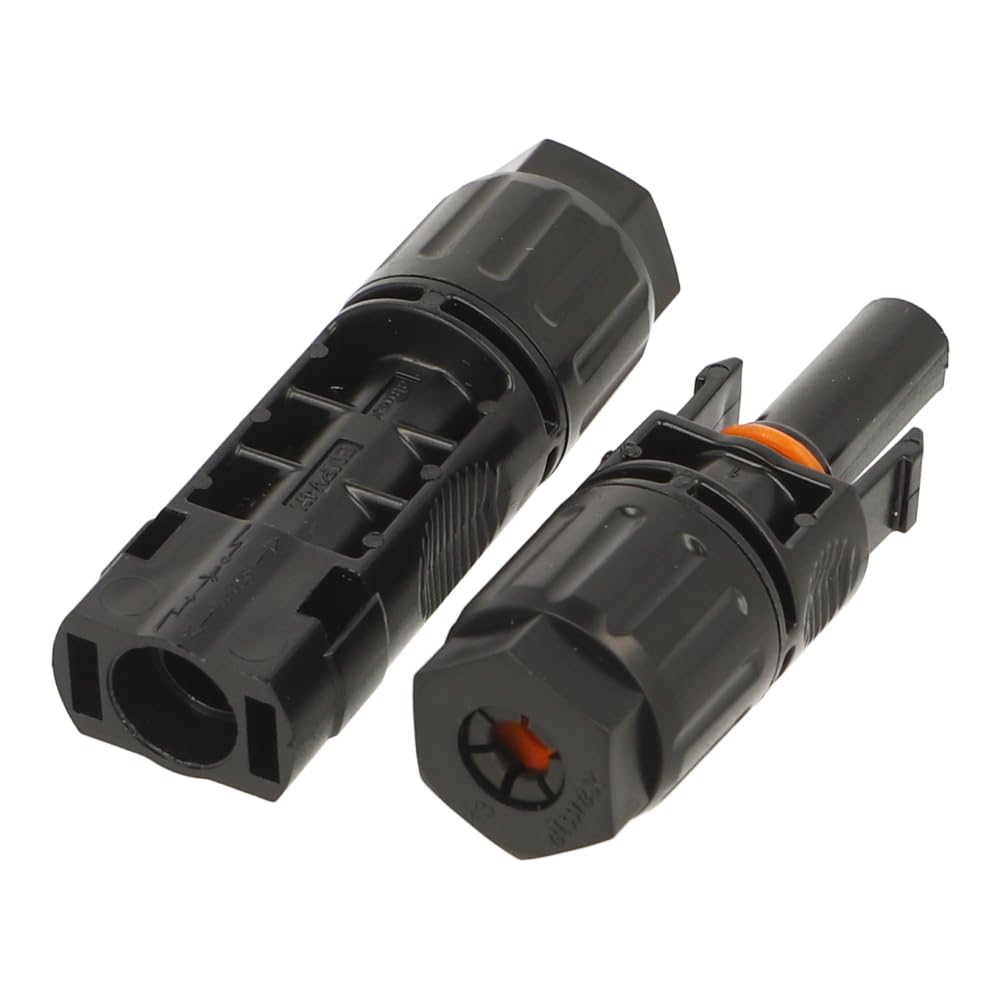

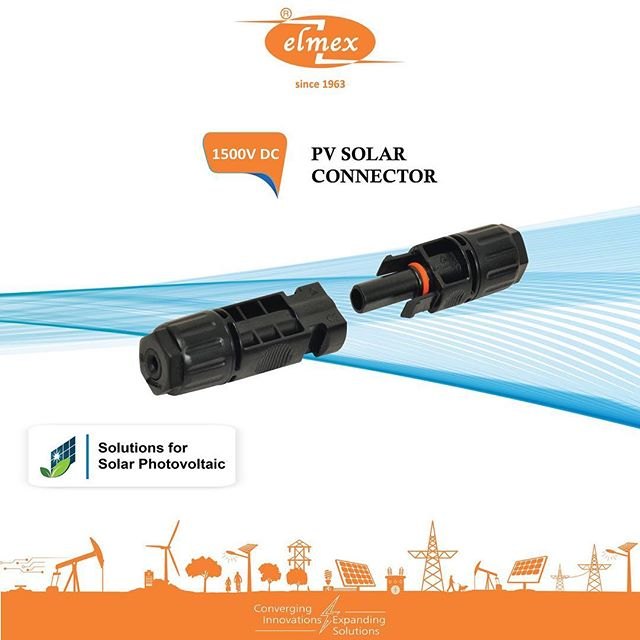

ELMEX Make - Solar MC4 PV Photovoltaic Male-Female Connector.

Panel Connector:

ELMEX Photovoltaic Panel Connector:
To cater to the requirement of panel mounted connection, elmex' has developed solar panel connectors EMPVPCM4 and EMPVPCF4. elmex' panel connectors are designed for use in connection of photovoltaic devices like panels, inverter, string boxes, etc. elmex' panel connector is provided with hexagonal nut for fixing and tightening it on the mounting surface: a rubber o-ring is kept between panel surface and the wall of the photo voltaic devices. elmex' connector has mating compatibility with elmex' make straight connector EMPV4

Specifications:
DescriptionElmex SpecificationRated Voltage1000 V DCRated Current25 A(2.5 mm2), 30 A(4.0 mm2, 6.0 mm2)Test Voltage6 KV (50 Hz)Contact MaterialCopper with Tin PlatingOperating Temperature-45C to 90CSafety ClassIIContact ResistanceInsertion Force50 NWithdrawal Force50 NmSuitable Cable2.5 mm2/4.0 mm2/6.0 mm2Locking SystemSnap InRated Voltage1000 V DC .

Description	Specifications
Rated Voltage	1000V DC
Rated Current	15 A
RMS Test Voltage	6 kV(1000 V)
Impulse withstand Voltage	12 kV
Degree of Protection	IP 68
Contact Material	Copper Alloy with Tin Plating
Ambient Temperature	-45 C to +85 C
Max. Operating Temp.	+110 C
Pollution Degree	3
Insertion Force	<_50 N
Withdrawal Force	>_50 N
Locking System	Snap In
