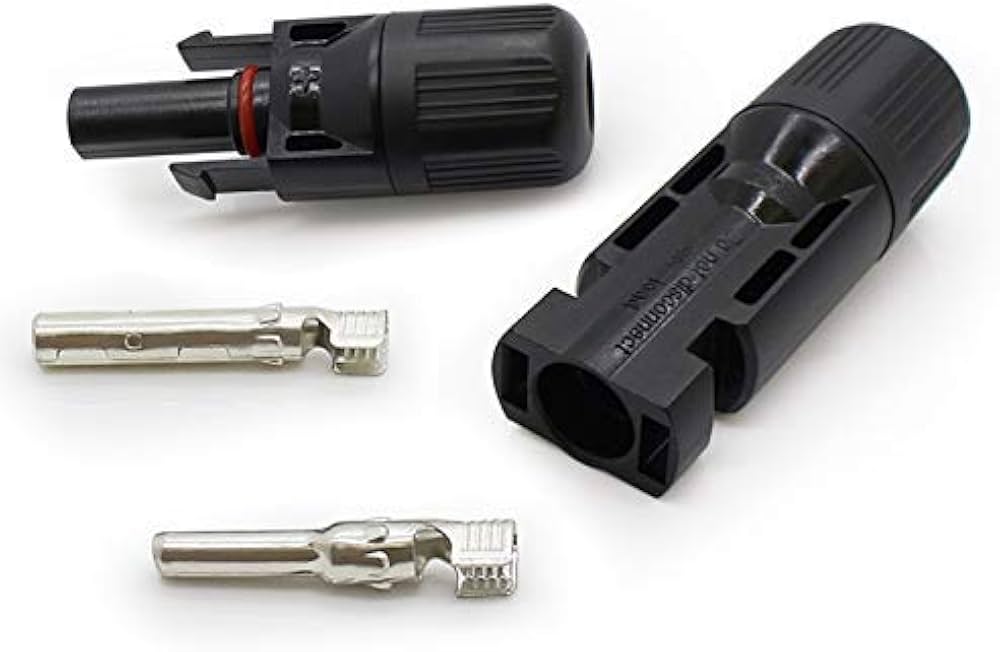

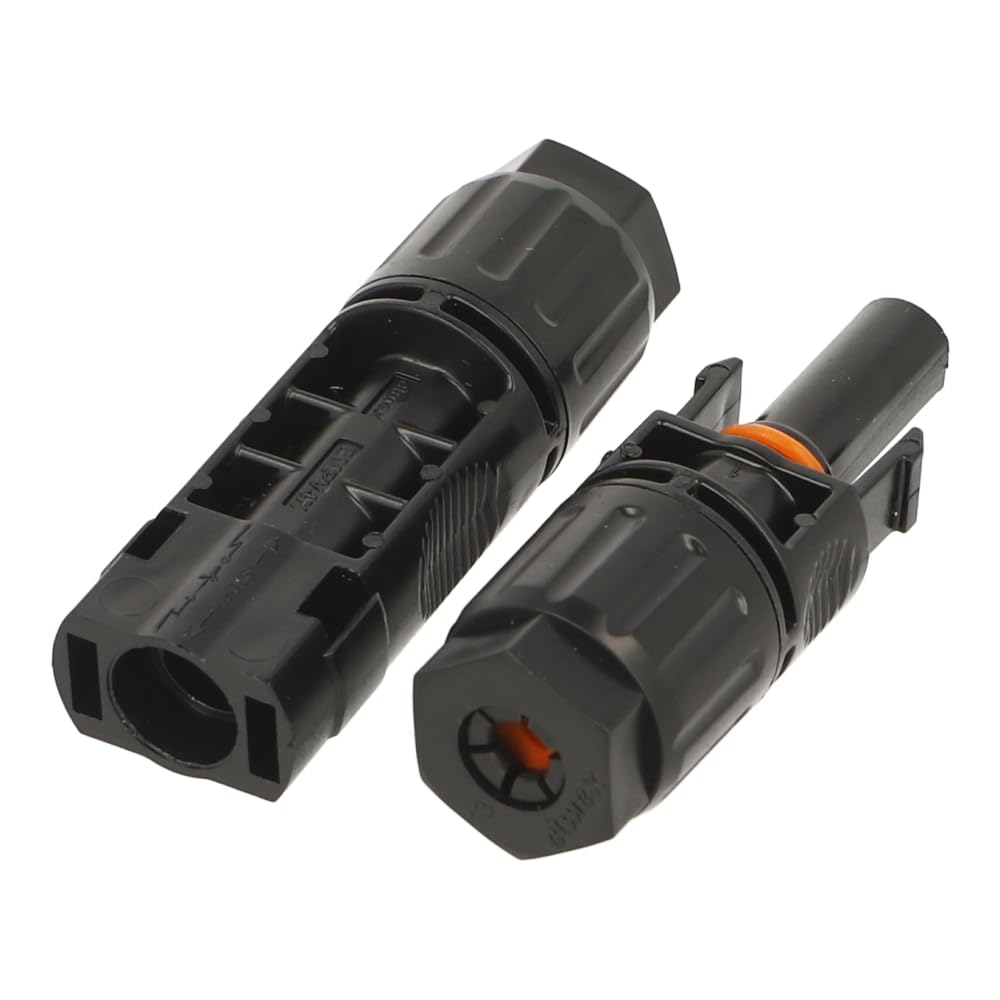

'elmex'PV Solar Straight Connector EMPV4N features a plug and socket design made from flame-retardant engineering thermoplastic,'elmex'PV connectors are built to withstand harsh environmental conditions, including prolonged exposure to UV rays, ensuring longevity and reliability in outdoor applications. EMPV4N Straight connector are IP 68 rated for water resistance which makes the connector ideal for use in various weather conditions to maintain their performance and durability. The connectors are designed as male (plug) and female (socket) types to prevent chance of wrong connections. For optimal performance, it is essential to use TUV certified DC solar cables compliant with IEC 62930:2017 standards.

Note: Our Connectors are suitable for PV Solar Cables of2.5 mm/4.0 mm/6.0 mm diameter (As per StandardIEC 62930:2017).

*Connectors when mated , need a tooltoopen in accordance with NEC 2014.

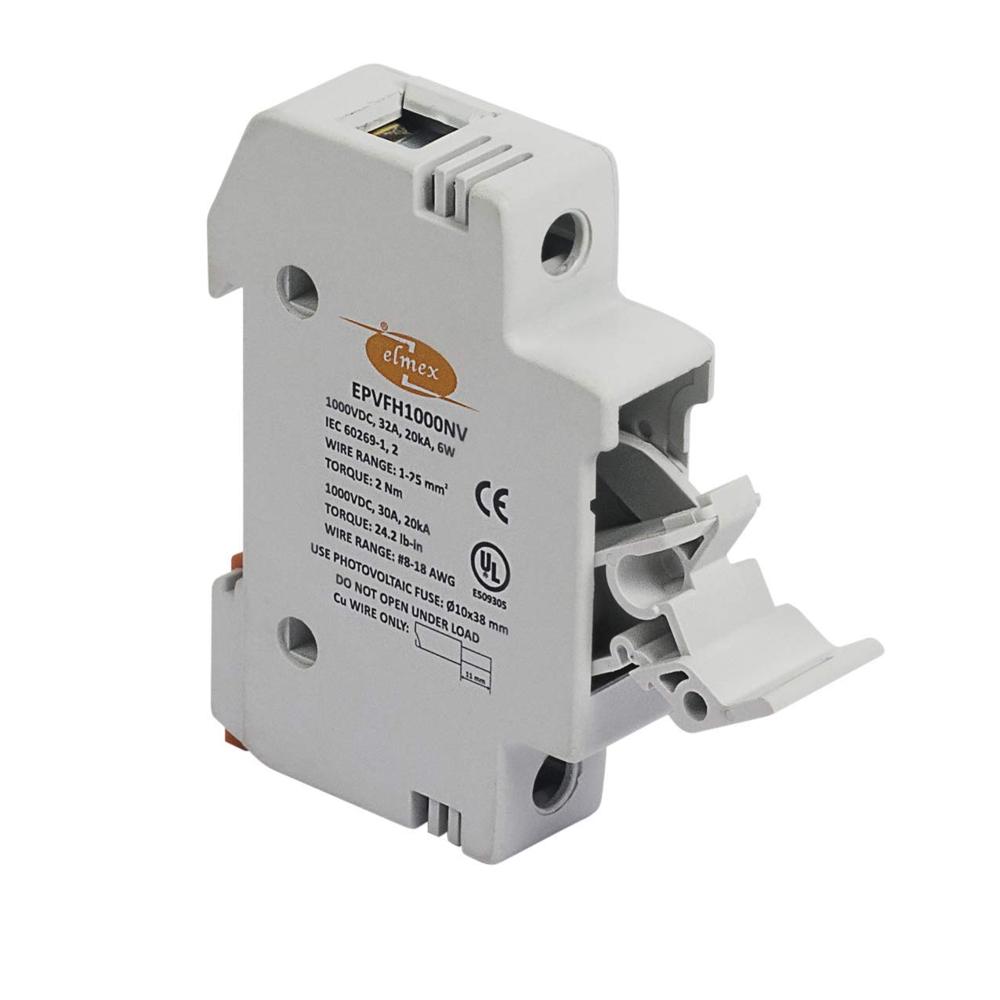

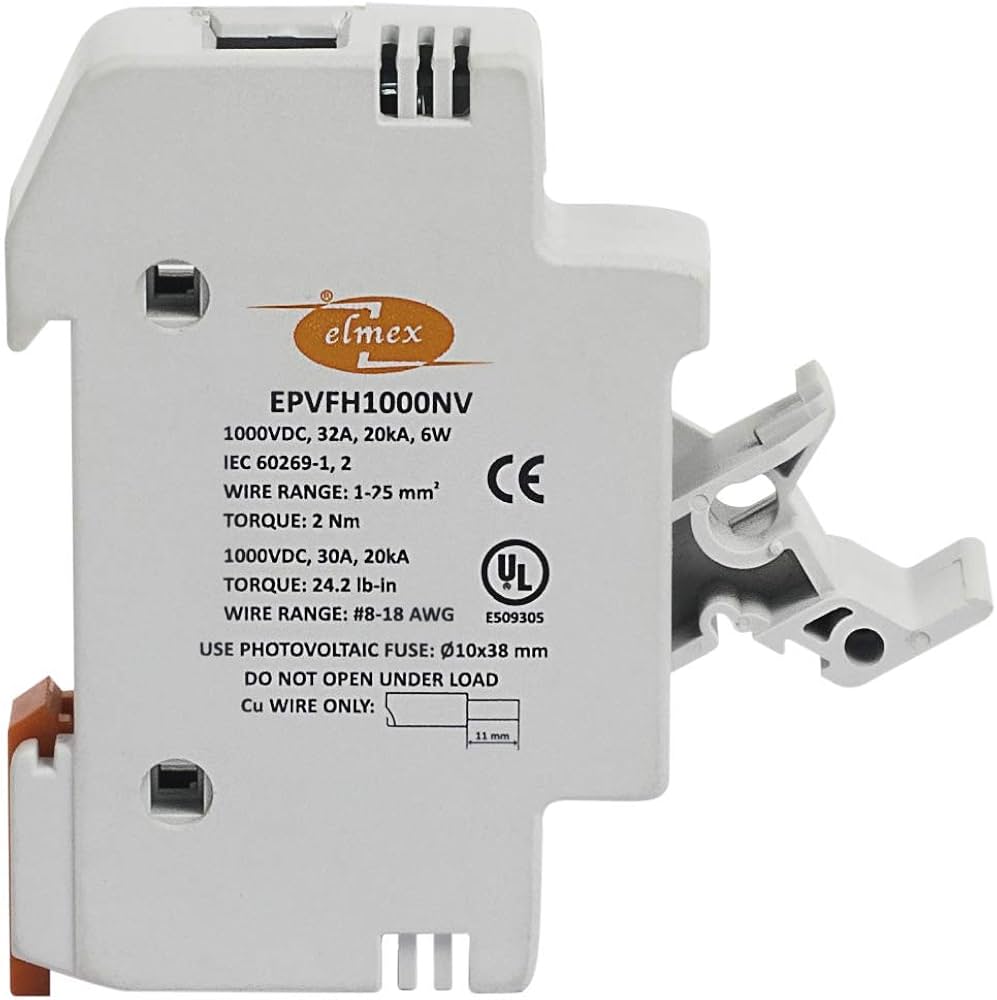

PV Solar Fuse Terminal Block - 1000V

'elmex'PV Solar Fuse Terminal Block EPVFH1000NV is specifically designed for 1000 VDC photovoltaic applications, providing essential string protection. It is used for connecting photovoltaic devices such as DC and AC distribution boxes, inverters, and string combiner boxes in both rooftop and ground-mounted solar power systems. Solar Fuse Terminal Blocks are constructed in accordance with IEC 60269-1-2 and UL 4248-1 & UL 4248-19 standards, and are compatible with cylindrical gPV fuses of size 10 x 38 mm. The design of the fuse terminal block allows for mounting with a spacer, which creates a gap between adjacent fuse holders. This gap facilitates air circulation, helping to reduce the operating temperature and enhance the overall reliability and efficiency of the system.

Note: It is recommended to use gPV (cylindrical) fuse of10 mm x 38 mm dimension.
